LenSun

10A MPPT Solar Controller

Regular price $75.99 USD
Regular price $79.99 USD Sale price $75.99 USD
Tax included. Shipping calculated at checkout.

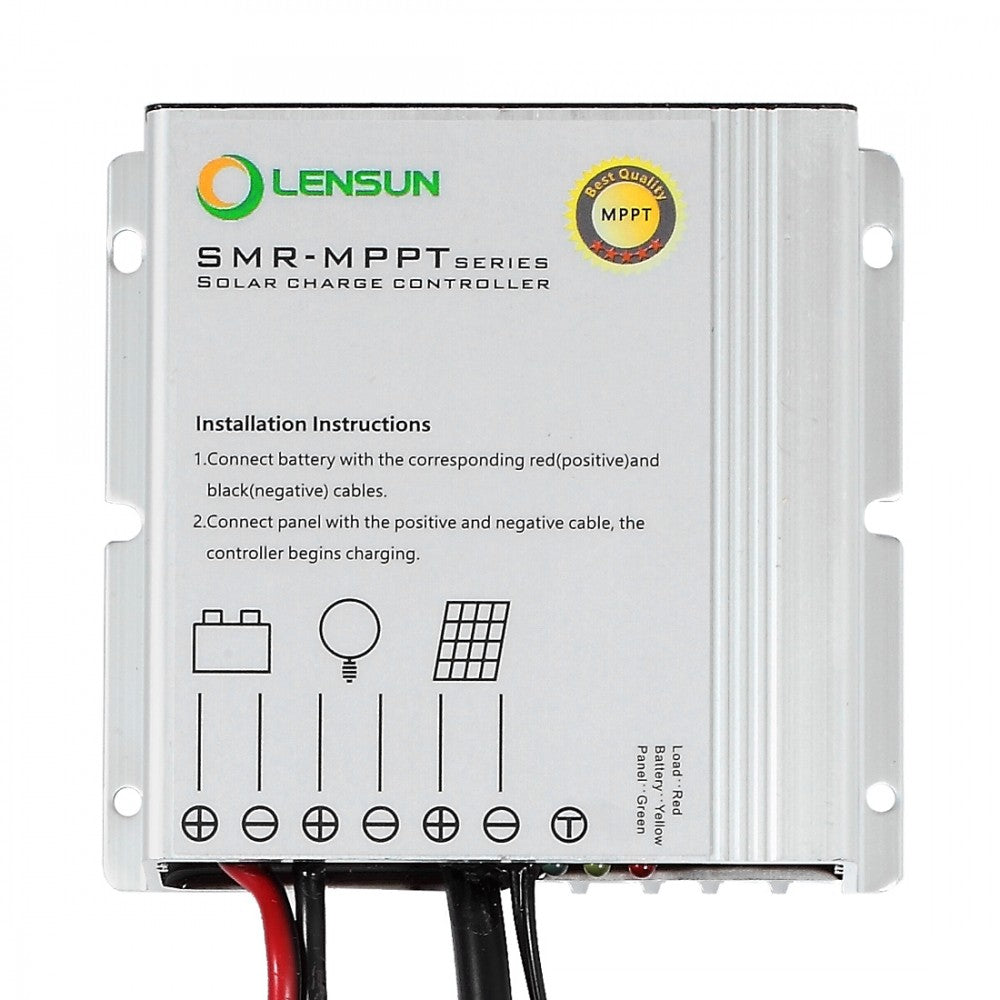

10A Waterproo MPPT solar controller with battery clips and MC4 connector for charging a battery


The Solar charge controller is based on common negative design and advanced MPPT control algorithm, with intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.

Dual automatic restriction function when exceeding rated Charging Power and Charging Current. Great for rv, boat, communication base stations, household systems, and field monitoring, etc.

Bluetooth,Support mobile phone APP, offers wireless monitoring function of solar controller.

Compatible with Various Battery options: Sealed, AGM, Gel, Liquid and Lithium-ion.

Feature
1. Accessories includes MC4 connector- for solar panels, 60inch(1.5m) cable with battery clips & 20A fuse for battery.

  1. Lithium, Liquid, Gel, Flooded and AGM battery for selection.
  2. Waterproof IP67, Strong and durable aluminum case, suitable for indoor, outdoor, camping, boat, and RV use.
  3. Bluetooth,Support mobile phone APP, realize wireless monitoring function of solar controller.
  4. Innovative MPPT technology with High tracking efficiency >99.9% and peak Conversion efficiency of 97.5%. Four stages charge way: MPPT, boost, equalization, float.

Dual automatic restriction function when exceeding rated Charging Power and Charging Current. Great for rv, boat, communication base stations, household systems, and field monitoring, etc.




Specification:

* Model No: SMR1050-KT

* Battery Type: Lithium, Liquid, Gel, AGM battery

* Nominal System Voltage: 12V

* Rated Battery Current: 10A

* Maximum Battery Voltage: 25V

* Max. Solar Input Voltage: 45V

* Max. PV input power: 130W

* Self-consumption: 6mA



Mechanical Parameter:

* Dimension: 3.4x3.2x2.5inch/86 x 81 x 63 mm

* Mounting hole size: Φ4.5

* Weight: 1lbs/0.5 kg



Packing:

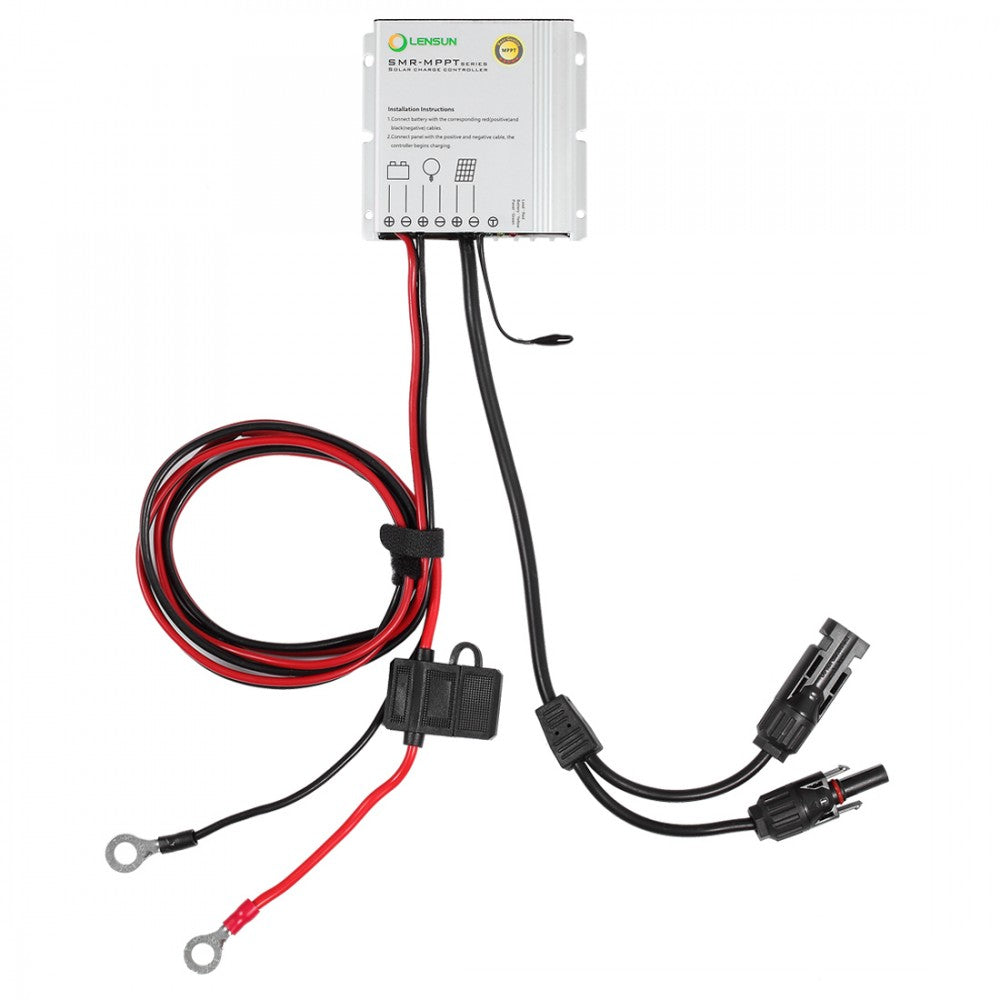

1 x 10A Waterproof MPPT solar regulator with battery clips and MC4 connectors
