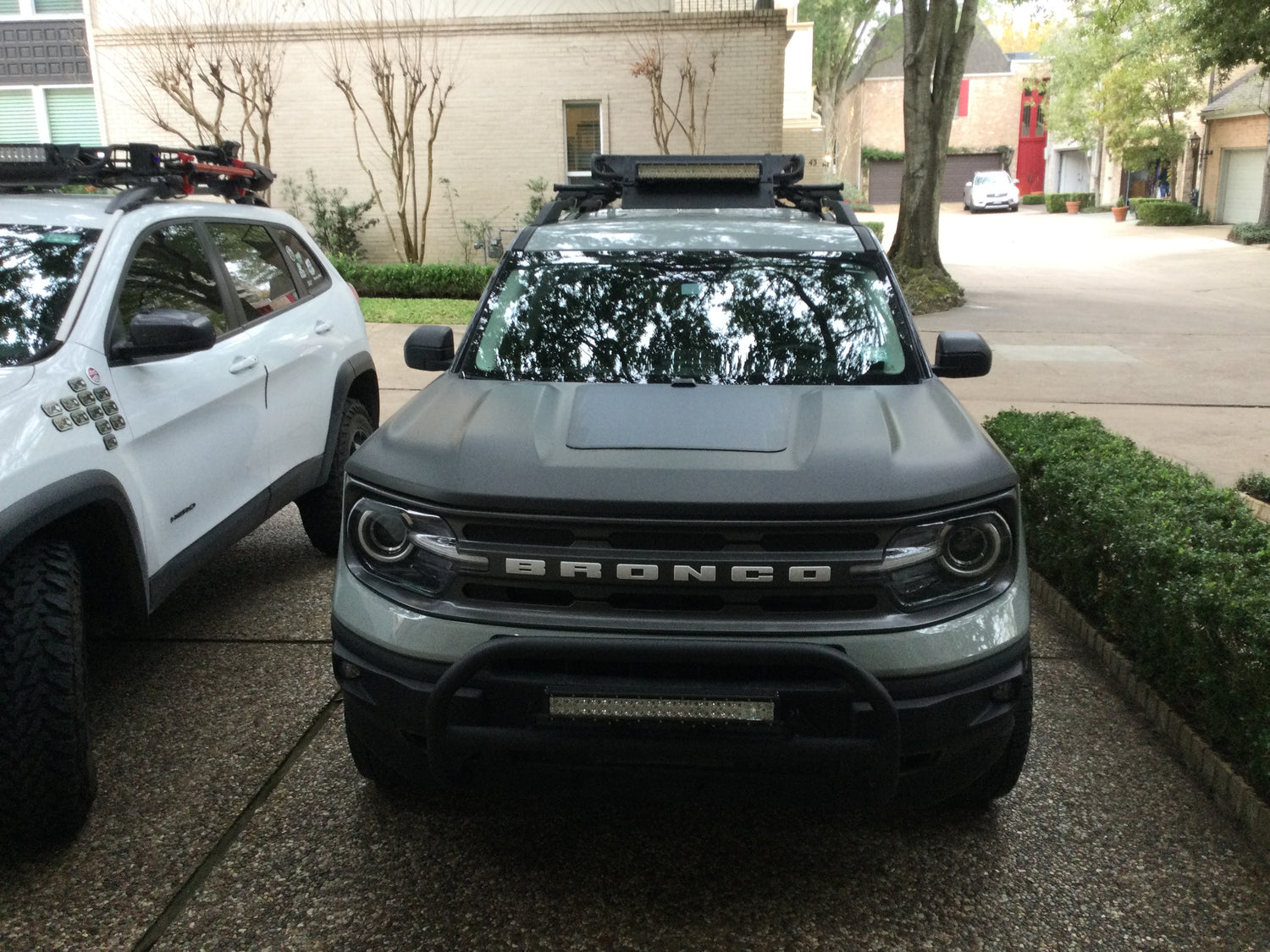

2020+ Bronco Sport 65Watt Solar hood panel

65W Hood Solar Panel for Ford Bronco(2020-Present), the solar panel installs on the hood and charges the vehicle battery or house battery.

* Charge controller and vinyl base layer are also sold separately on this site. *

we are very pleased to offer this product as it was measured, designed and printed from our test Bronco measurements, by US! That means we KNOW it fits! Our donor Bronco Sport is the first ever in the world to have this product. How cool is that?

This provides power to keep 12v accessories like fridges, lighting, phones, cameras, radios, etc everything else charged.  Do not worry a dead battery while camping/off the grid.
Perfactly shaped for the hood of the vehicle.  Easy to install plug and play wiring.

Feature:
1. Keep your vehicle battery topped up at all times. Your battery will charge every time your vehicle is parked in the sun. Perfect for the overlander or camper who wants to power devices without worrying about draining their battery. 
2. Prolongs your battery life. The solar panel will give you longer overall battery life by tending it constantly during periods of sun exposure. 
3. Emergency engine starting device.  If you ever manage to completely drain your battery. The solar panel will start the vehicle up again in as little as 30 minutes depending on sun exposure.  Very efficient and great back up if you want to be off the grid.
4.Decreased hood glare. Due to it's light absorbing properties the solar panel creates a surface with very low reflectivity across the hood of the vehicle, the decreased glare while driving. That means constant charging regardless of sun angle.

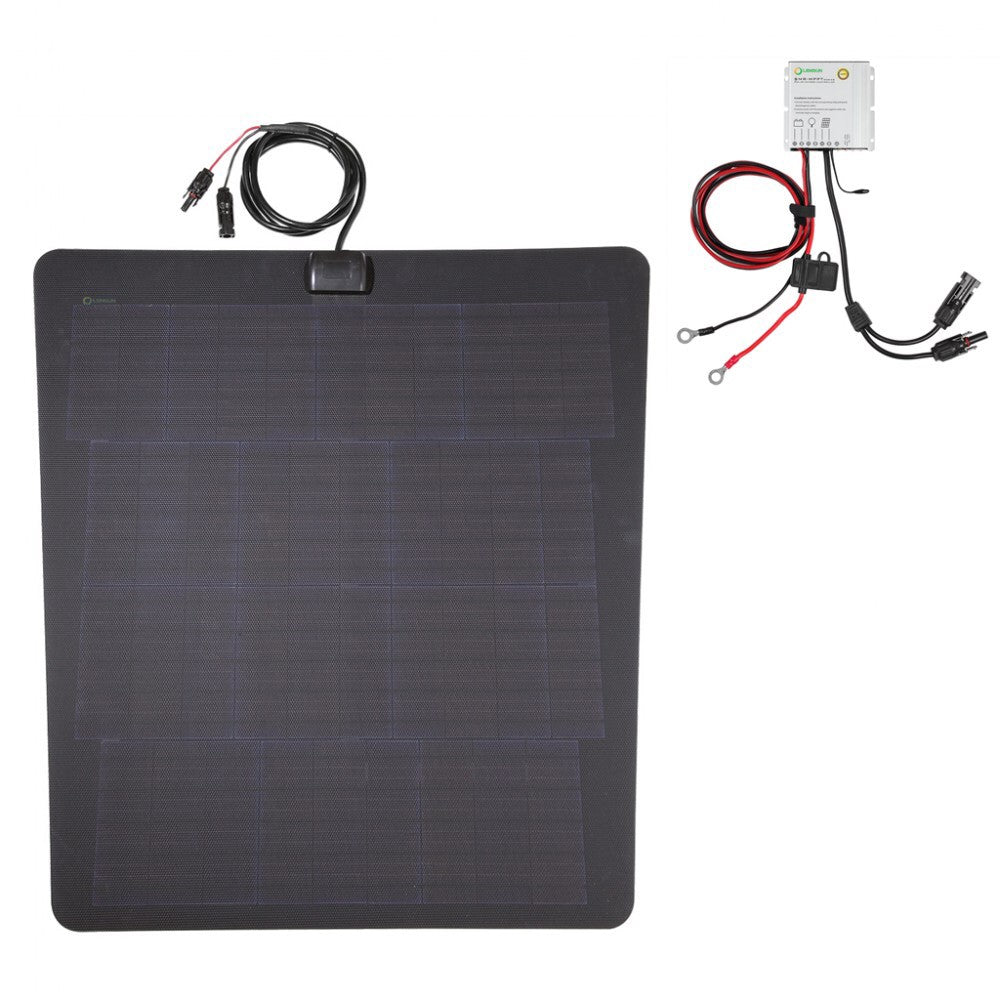

5. The optional Plug-and-play 10A Waterproof MPPT solar charge controller, has been pre-wired with fuses, terminals, and connectors. This controller compatible with Various Battery options: Sealed, AGM, Gel, Liquid and Lithium-ioN

6. The optional but highly recommended custom cut vinyl base sheet protects the underlying vehicle paint from damage. The Solar charge controller is based on common negative design and advanced MPPT control algorithm, with intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.

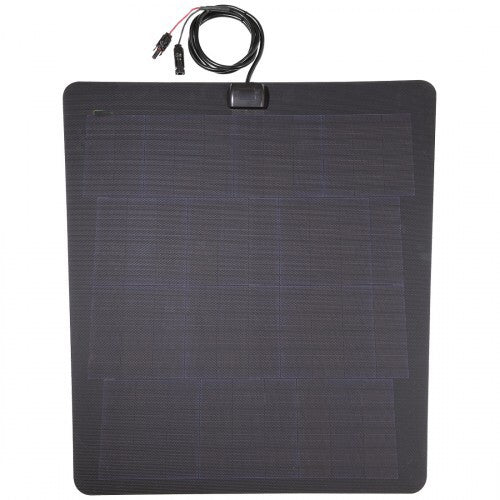

Lensun 65W ETFE Flexible Solar Panel Feature

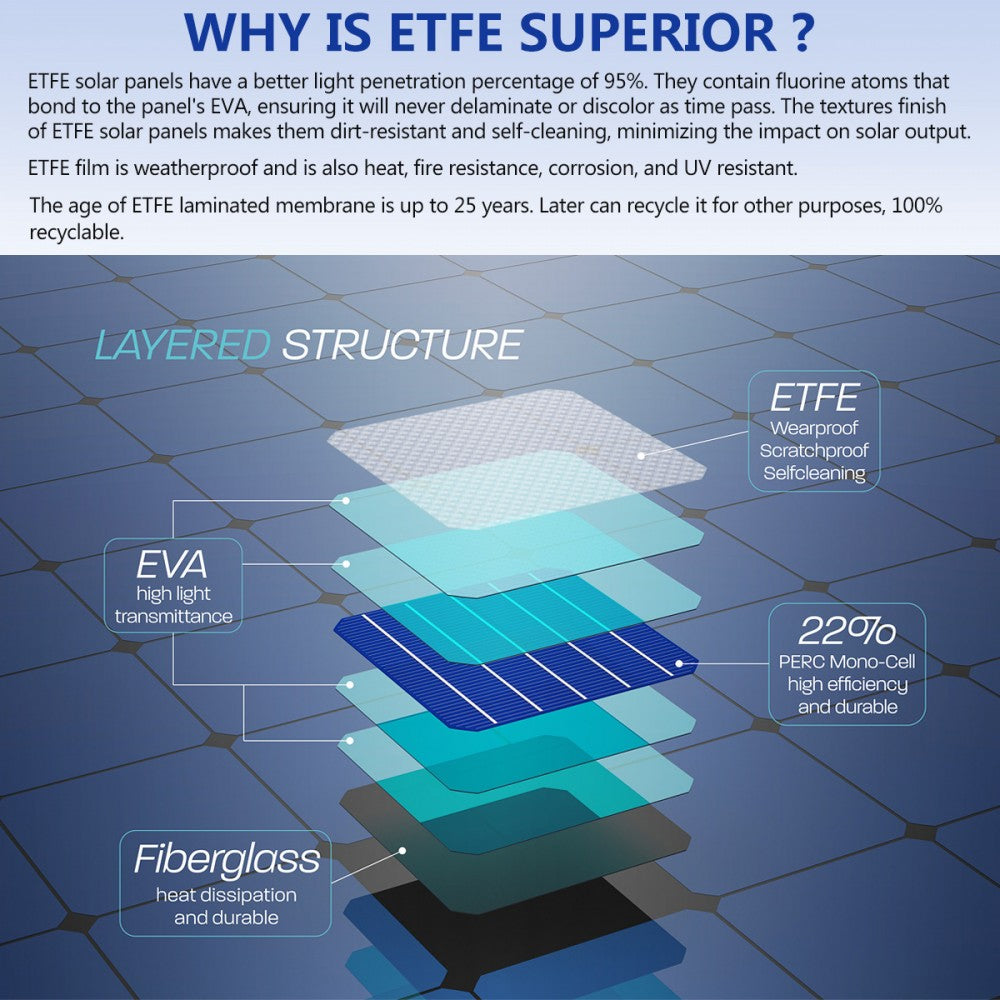

1. Solar cell: Grade A PERC Monocrystalline solar cells with much higher efficiency and more durability than other mono solar cells.
2. Premium EFTE Film: This film features superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. ETFE also has self-cleaning abilities, ensures the best performance day after day.

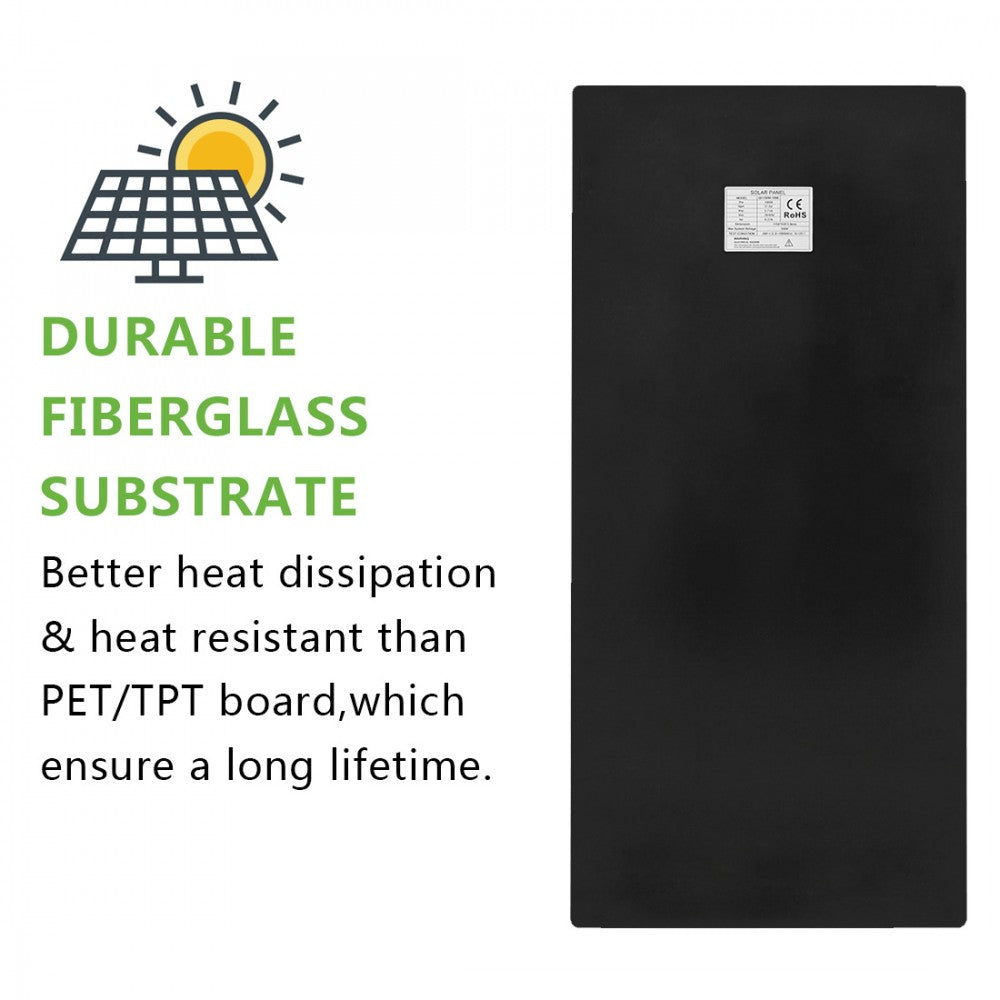

3. Backboard: Durable fiberglass substrate backboard, better heat dissipation than PET backboard which ensures a long lifetime. ETFE film and fiberglass backboard can withstand extreme environmental conditions, maintenance-free for years.
4. Ultrathin & Lightweight: At only 3mm thick, the solar panel is powerful, waterproof, lightweight(60% less than the conventional solar panels), durable, and highly resistant to the harsh operating conditions of a marine environment.

Electrical Information:
Peak power: 65W
Solar cell efficiency: 23%
Maximum power voltage: 20V
Maximum power current: 3.25A
Open circuit voltage: 23V
Short circuit current: 3.57A
Power allowance range: +/-3%
Maximum system voltage: 500V
Net Weight: 1.6kg/3.6 lbs
J-Box: IP 68 rated with 2m/6.5ft cables and MC4 connectors
Values at standard test conditions: Air Mass - AM1.5, Irradiance - 1000W/m2, Cell Temperature - 25°C

Installation:

Can be fixed by 3M tape or sikaflex glue. We highly recommend install the solar panel with our specific vinly decal, the vinyl decal sits under the solar panel and protect the hood paint. The vinyl decal install on the hood in the same way that traditional hood vinyls or automotive vinyl stickers are applied.

The installation must be done in a dry environment between 18° and 35°C   (64° and 95°F). In cold conditions, the solar panel will not have enough flexibility to form to your hood, and the adhesive will not properly bond. Your installation will FAIL.

If you don’t know how to install, we suggest you find a local auto modification shop to install.
