Air Hose Kit, Engine Bay To Gas Door

As seen on our social media accounts and created in-house, this kit includes everything you need to install a quick connect coupler inside your gas door and run the pneumatic air hose back to your engine bay mounted air compressor (such as ARB). We use high quality pneumatic fittings and kink resistant hose in our kits, and the systems are pressure rated to 110psi.

This is a VERY EASY install that most any user can complete in about an hour.

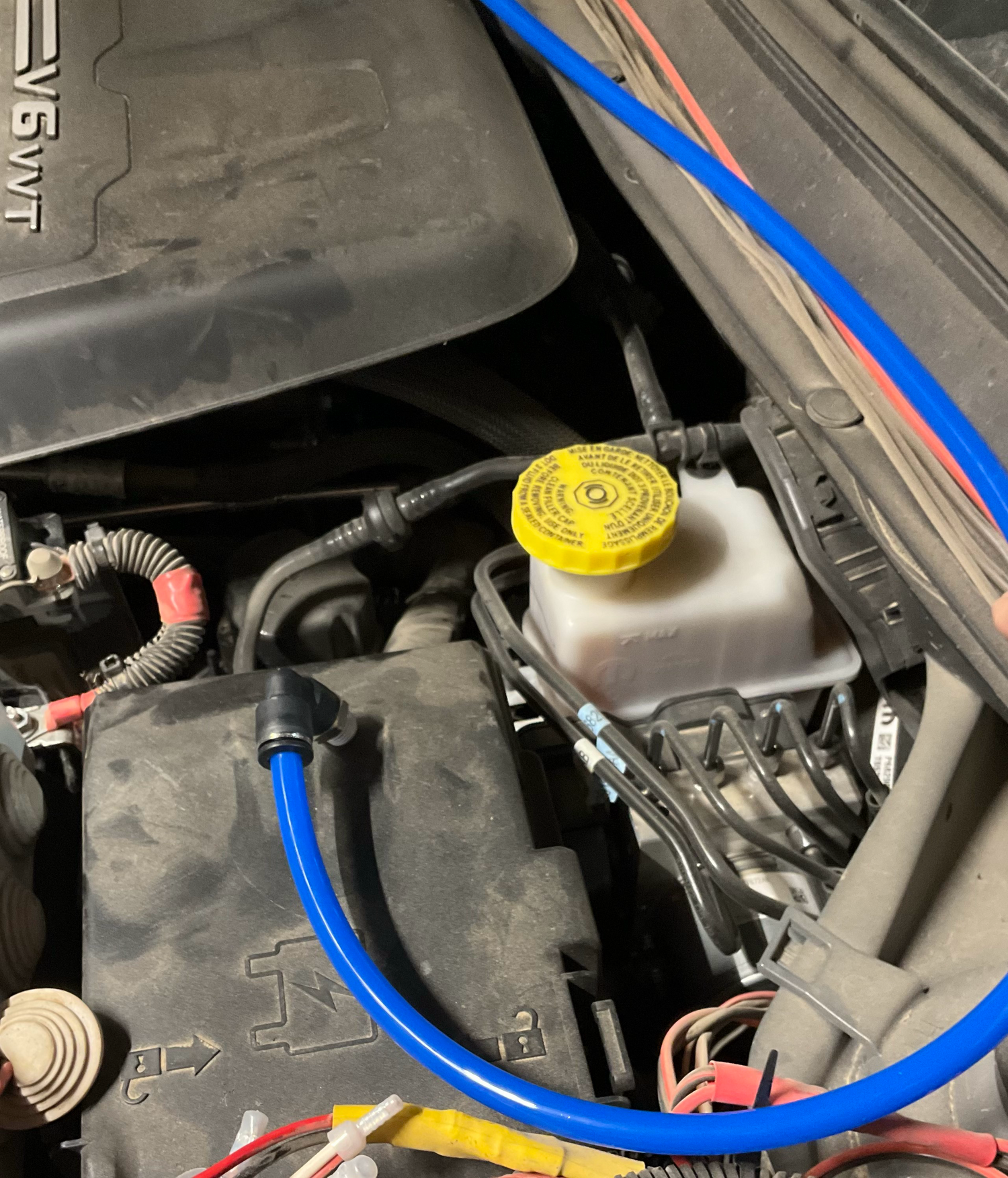

This kit takes a route between the engine bay battery area, along the upper fire wall, Down the passenger front wheel well, along the underside of the vehicle, up the passenger wheel well, to behind the gas fill well. Installation will only require one 14mm hole to be drilled, in the gas fill well. The fitings are tooless push to connect, press the collar to release.

this kit fits best in the 2019+ gas well  but can be used in 14-18 gas wells with some limited restrictions to the gas cap access.

The kit includes;

21 feet of 10mm pneumatic 110psi flexible tubing

1/4" 90deg MIP to pneumatic tube fitting (pump manifod to hose)

1/4" MIP to pneumatic tube pass through fitting (tubing to Quick Connect)

1 Air Hose Coupler Quick Connect

1 tube to tube 90deg elbow (installation may favor a 90deg drop into the passenger front fenderwell)

Pipe cutting tool (tubing must be cut without deforming the end to assure proper seal)

Small Roll of Teftape (if better thread sealing is necessary)

Tools not included:

Small wrench to tighten the fittings

14mm drill bit

Wire ties to secure hose along its route

Might also consider wire loom to cover the hose where abrasion may occur.
