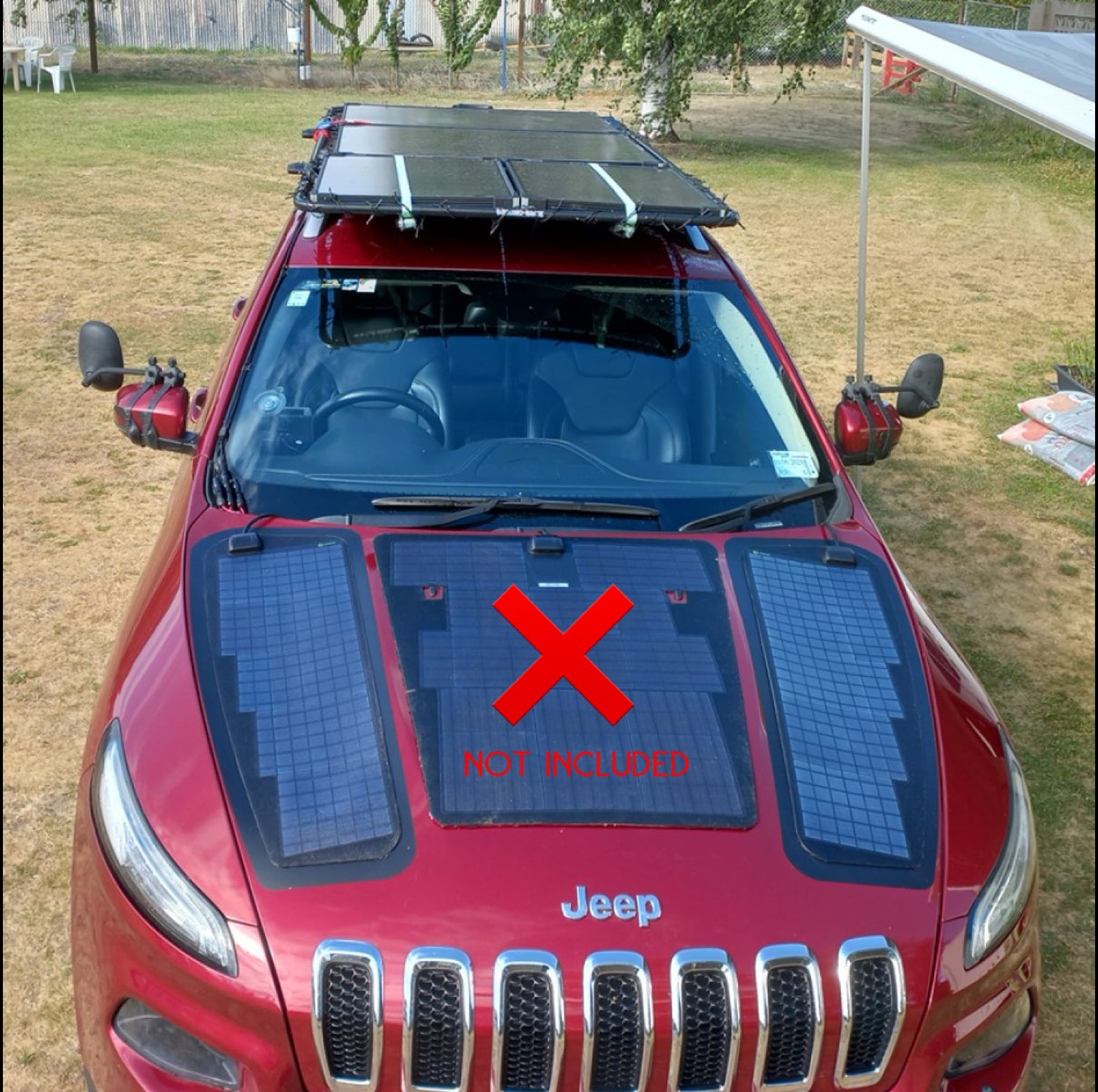

JEEP CHEROKEE ADD ON SIDE PANELS. 35watt x2
Booster panels to add additional solar on your hood. 70watts combined. We designed this panel set about a year ago and it sat idle. It’s now available as a separate item to compliment the KL 75watt center panel, or to run independently.
The optional Plug-and-play 10A Waterproof MPPT solar charge controller, has been pre-wired with fuses, terminals, and connectors. This solar controller is compatible with Various Battery options: Sealed, AGM, Gel, Liquid andLithium-ion. The Solar charge controller is based on common negative design and advanced MPPT control algorithm, with intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.
The optional but highly recommended custom cut vinyl base sheet protects the underlying vehicle paint from damage.
Peak power: 35W per panel
Solar cell efficiency: 22.5%
Maximum power voltage: 19.5V
Maximum power current: 1.79A
Open circuit voltage: 24V
Short circuit current: 1.97A
Power allowance range: +/-3%
Maximum system voltage: 500V
Net Weight: 1.2kg/2.6 lbs
J-Box: IP 68 rated with 2m/6.5ft cables and standard connectors
Values at standard test conditions: Air Mass - AM1.5, Irradiance - 1000W/m2, Cell Temperature - 25°C
