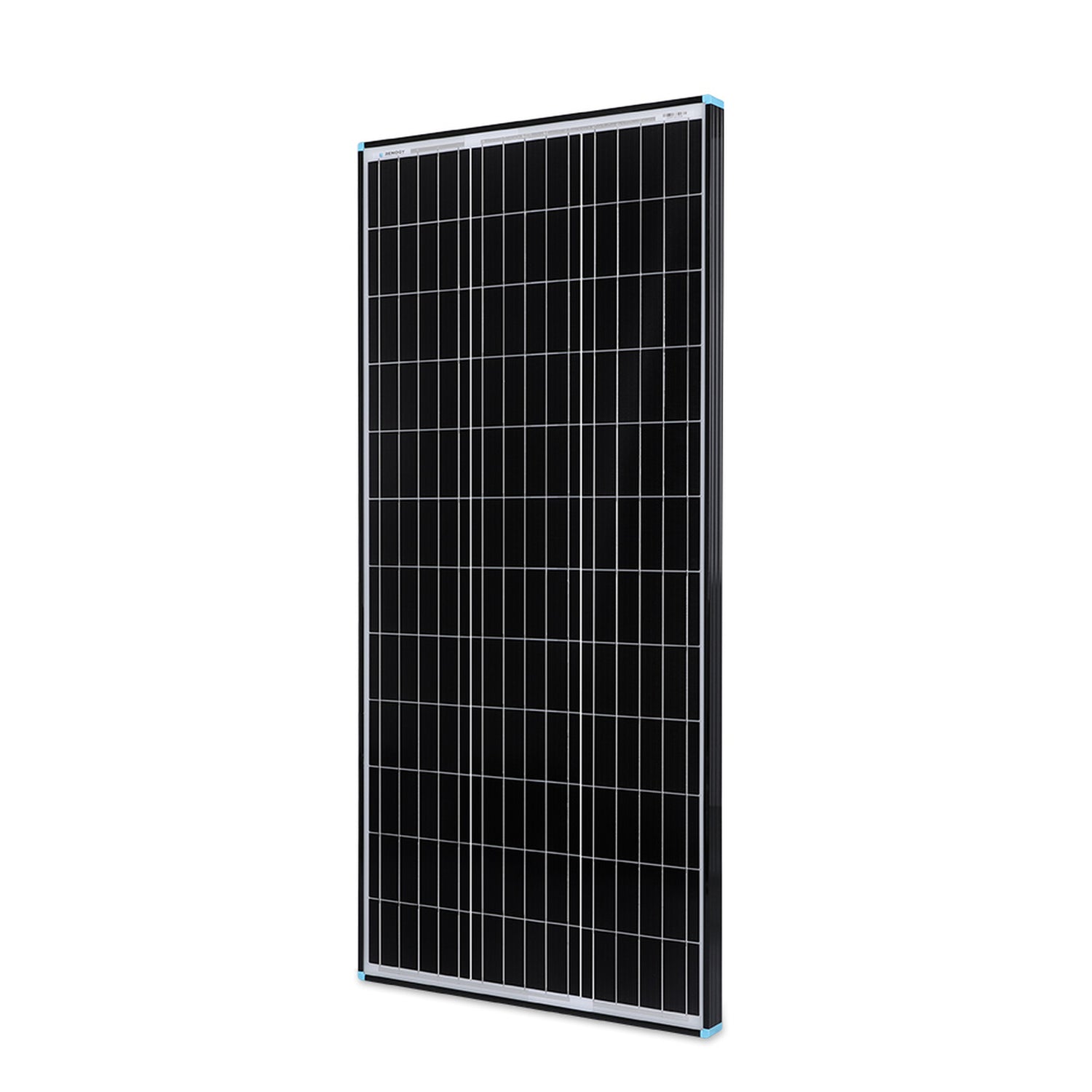

Renogy 100 Watt 12 Volt Monocrystalline Solar Panel
Regular price
$119.99 USD
Regular price
Sale price
$119.99 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
DESCRIPTION
The Renogy 100 Watt 12 Volt Monocrystalline Solar Panel is the perfect item for off-grid applications! High in power but compact in size, this 100W solar panel is a favorite for RVs, boats, campers, and similar applications, providing excellent efficiency per space. Ideal for starting a new project or expanding an existing one, Renogy 100W Monocrystalline Solar Panels will not disappoint.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or email support@renogy.com.
KEY FEATURES
Reliable

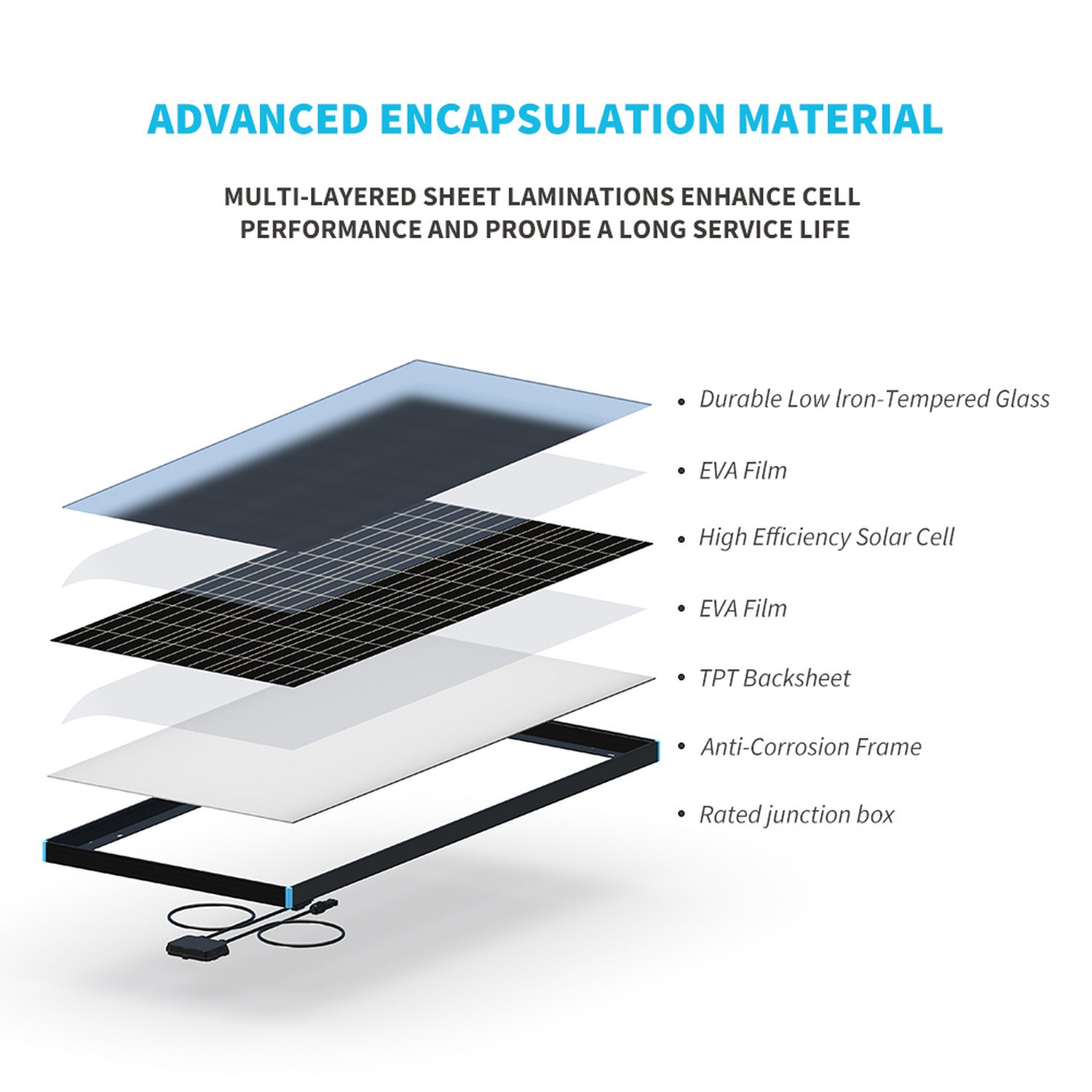

- Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life
- EL-tested solar modules; no hot-spot heating guaranteed
- Bypass diodes minimize power drop caused by shade
- TPT back sheet ensures smooth performance over a long period of time

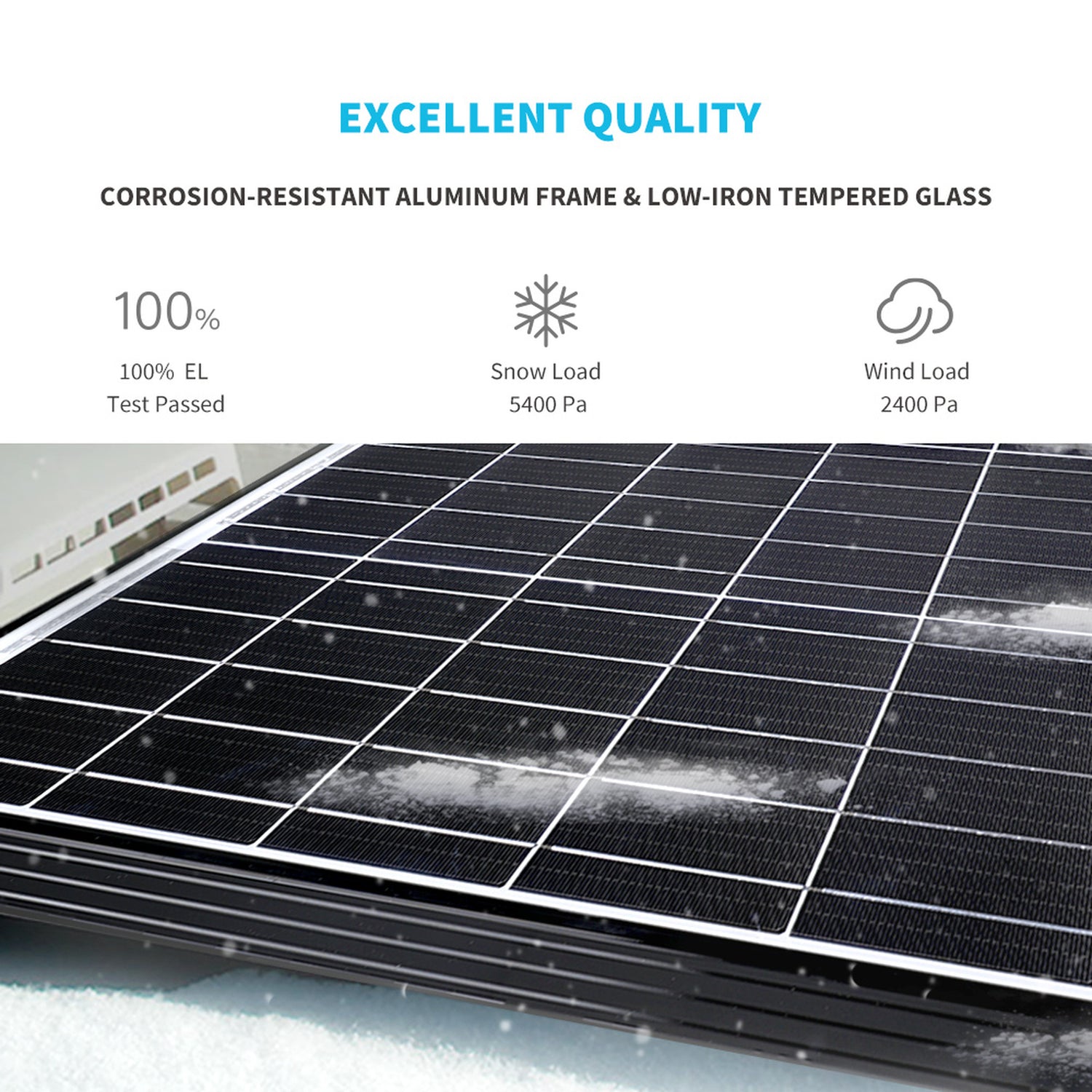

- Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
- Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades
- Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets
- Can be used for many different applications
- Ground mount compatible
- Compatible with on-grid and off-grid inverters

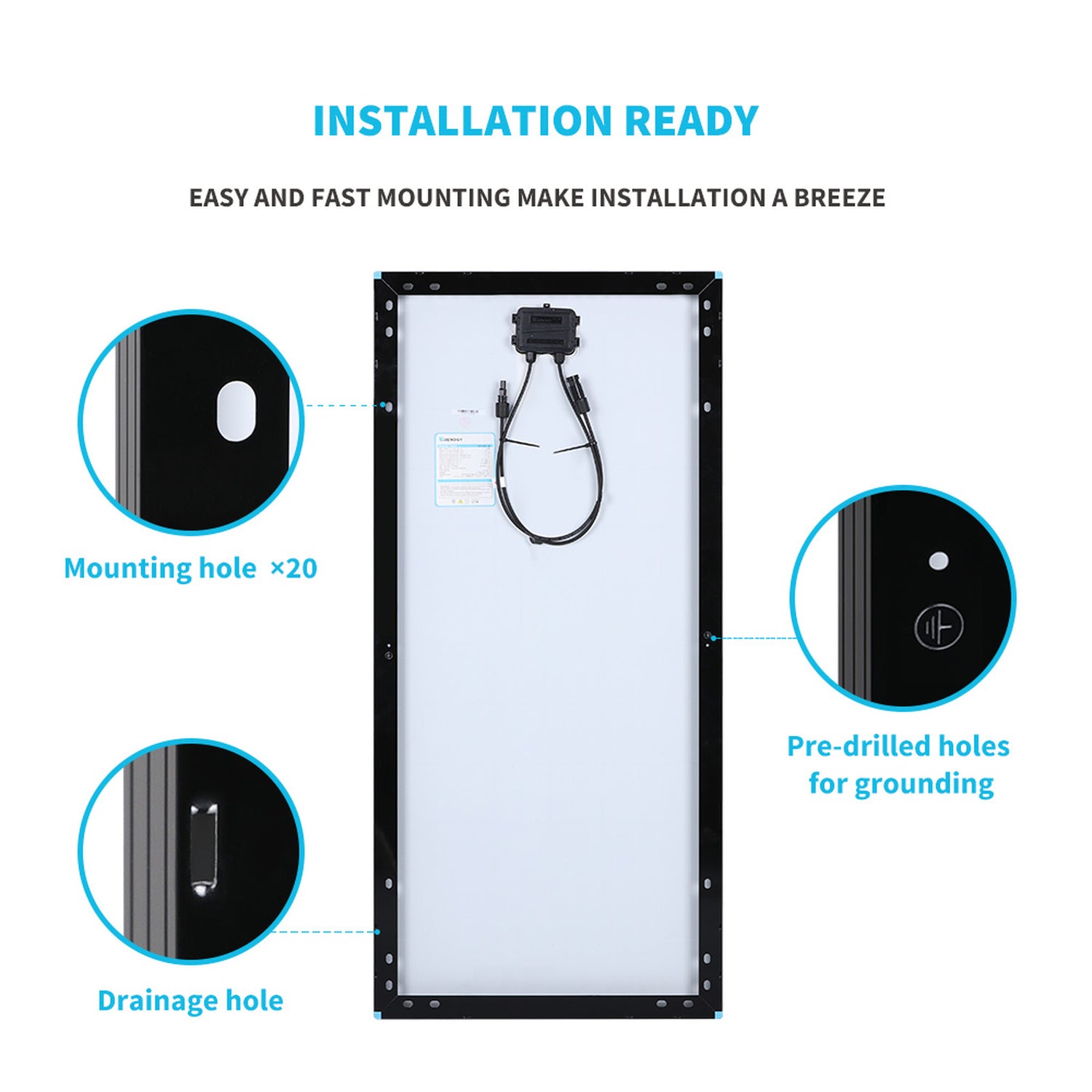

- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Pre-drilled holes included for grounding
- Compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts
PACKAGE INCLUDES
|
100 Watt 12 Volt Monocrystalline Solar Panel
1 x
|
| SPECIFICATIONS | |
|---|---|
| Max Power at STC: 100W | Open Circuit Voltage: 24.3V |
| Short Circuit Current: 5.39A | Opitmum Operating Voltage: 20.3V |
| Optimum Operating Current: 4.93A | Operating Temperature: -40°F to 194°F(-40°C to +90°C) |
| Maximum System Voltage: 600 VDC UL | Maximum Series Fuse Rating: 15A |

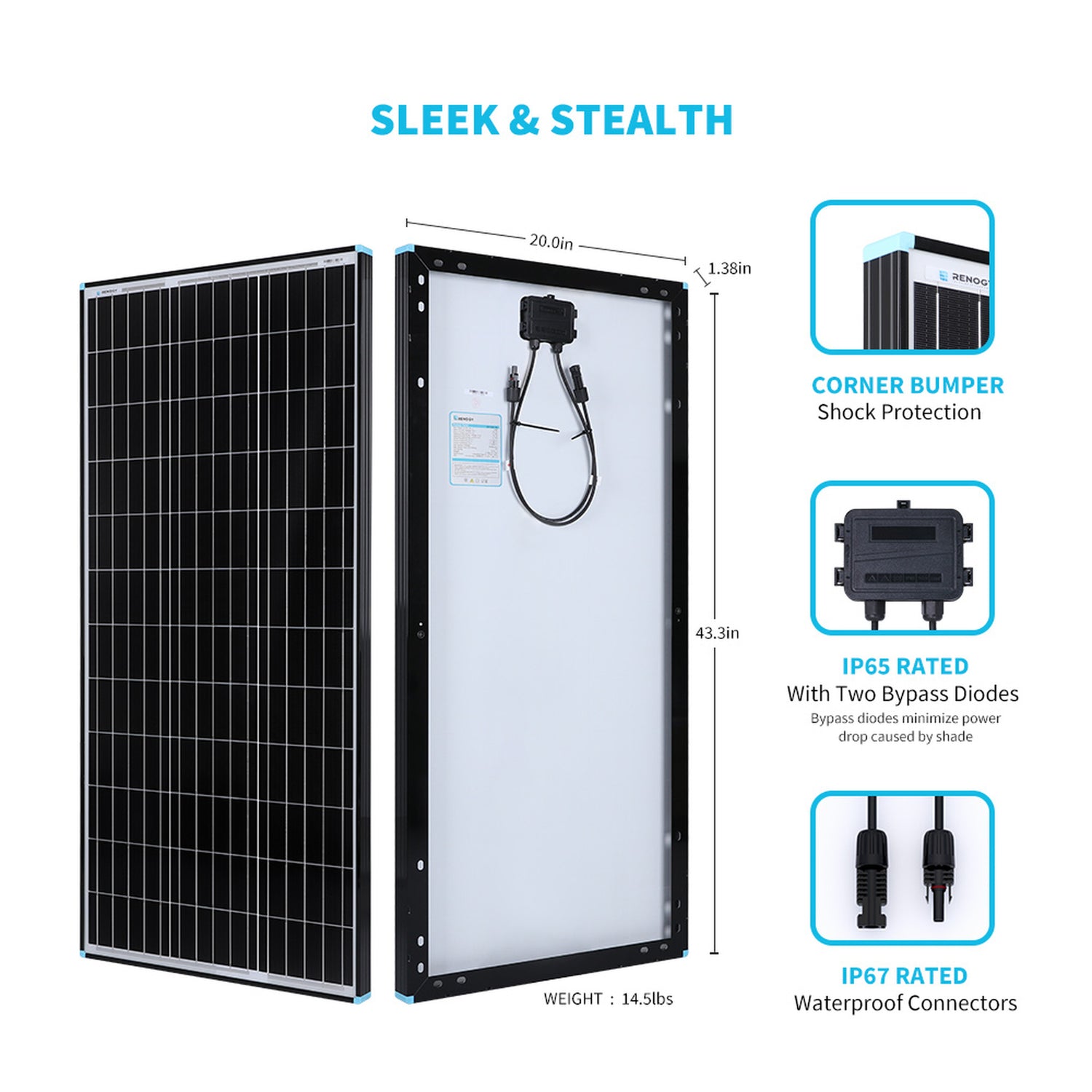

| Output Cable: 14 AWG 2 ft (0.6m) long | Dimensions: 1100 x 509 x 35 mm (43.3*20.0*1.38 in) |
| Weight: 6.5 kg (14.5 lb) |
WARRANTY INFORMATION
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 10-year material and workmanship warranty |
| Accessories | 1-year material warranty |
