Renogy

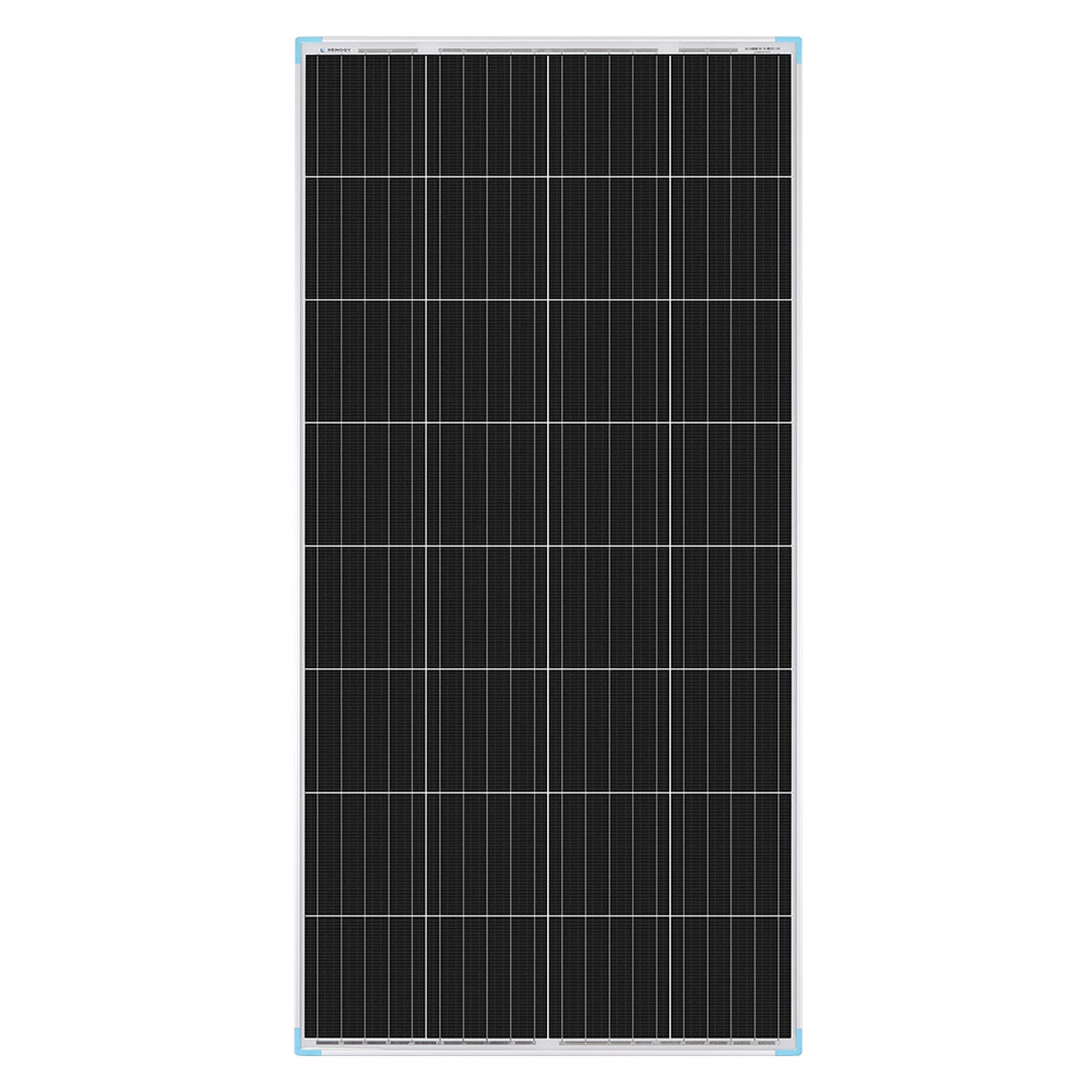

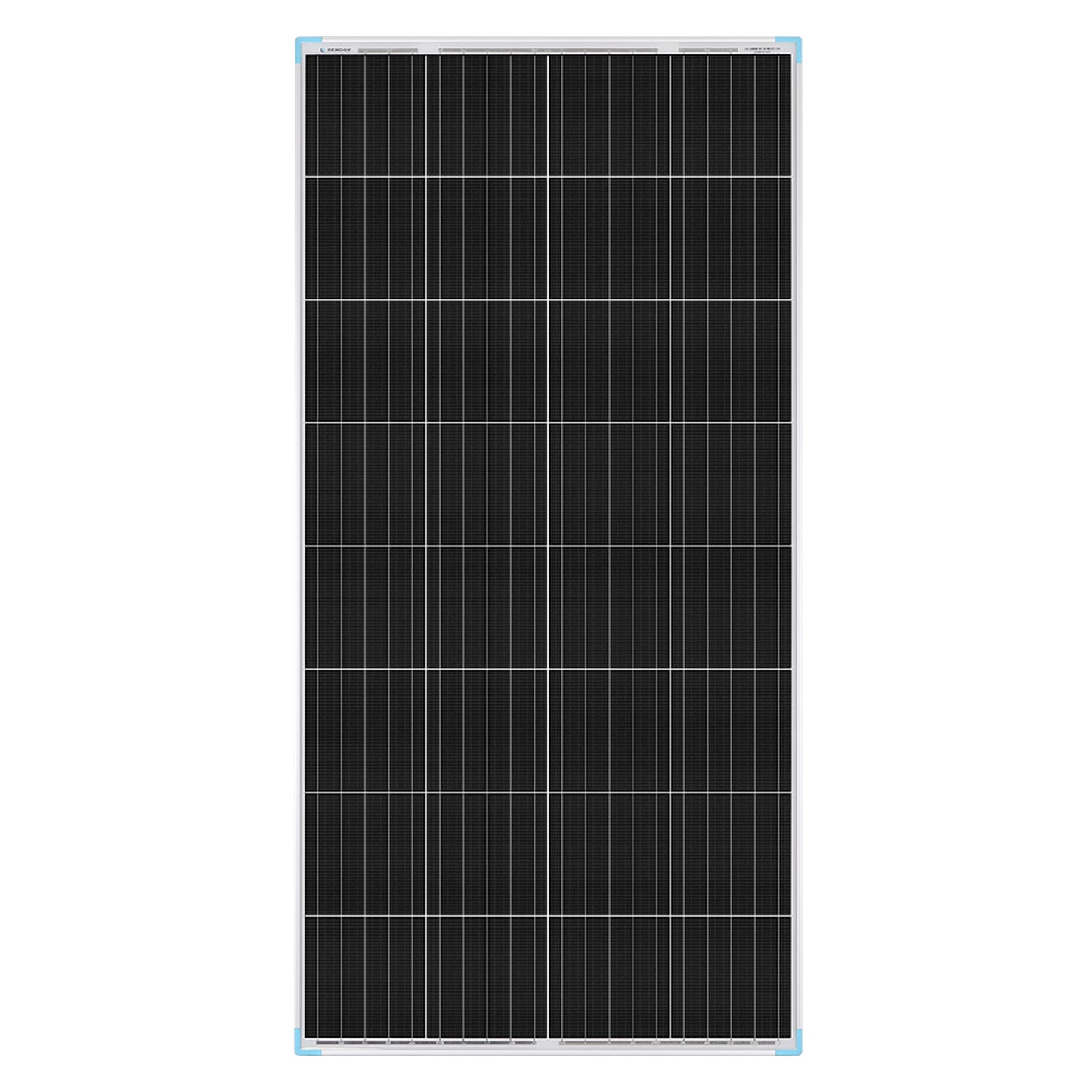

Renogy 175 Watt Monocrystalline Solar Panel

$255.99 USD
$259.99 USD $255.99 USD
Tax included. Shipping calculated at checkout.

DESCRIPTION

The Renogy 175 Watt 12 Volt Monocrystalline Solar Panel is a key component to any solar power (PV) system. Each solar panel includes solar connectors that extend from the junction box affixed to the back of each panel. The solar connectors are compatible with the Renogy solar connector Adaptor Kit - allowing for a quick and simple connection. Whether you take it camping in the mountains or for a trip to the beach, this off-grid panel can be a great start or addition to any Renogy off-grid system!

Each Renogy 175W Monocrystalline Solar Panel is capable of withstanding heavy snow and strong wind loads. Each panel is quality tested to ensure safety and longevity.


KEY FEATURES

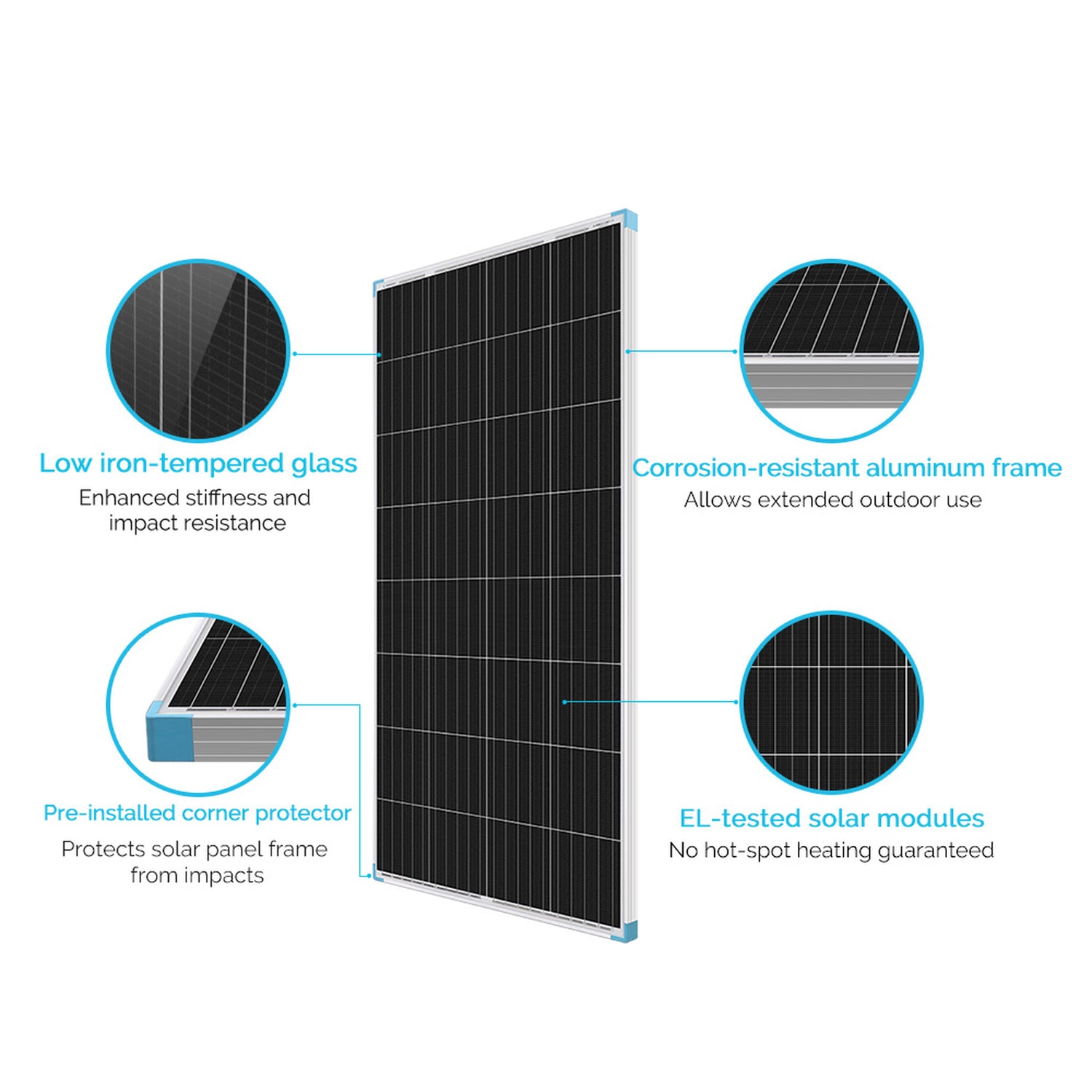

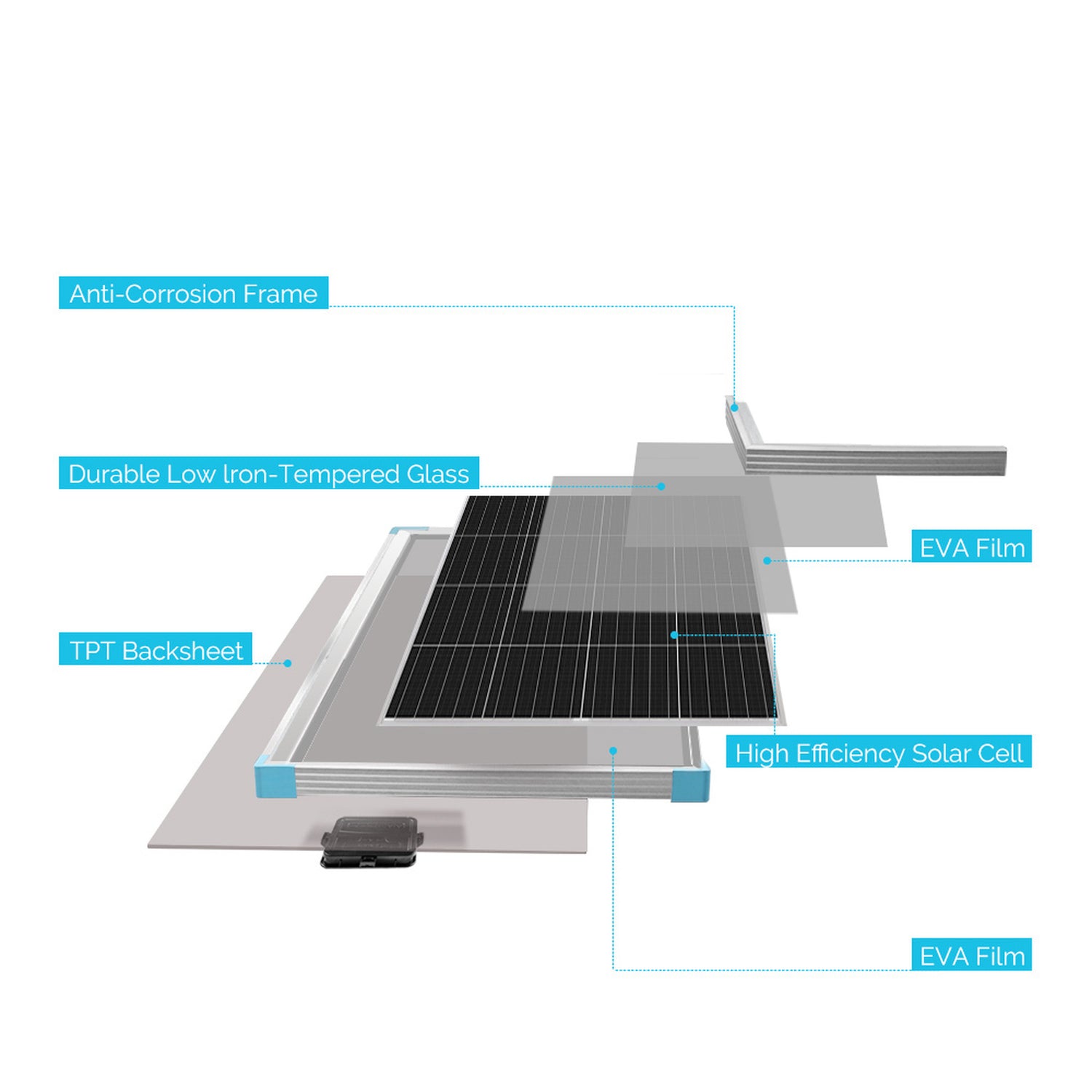

  • Multi-layered sheet laminations enhance cell performance and ensure a long service life
  • EL tested solar modules; no hot-spot heating guaranteed
  • Bypass diodes minimize power drops caused by shade and ensure excellent performance in low-light environments
  • TPT back sheet dissipates heat to ensure smooth performance over a long period of time
  • Pre-installed corner protector protects you from accidental cuts from the sharp corners and protects solar panel frame from impacts

Durable

  • Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
  • A corrosion-resistant aluminum frame allows for extended outdoor use with a typical lifespan of decades
  • Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance

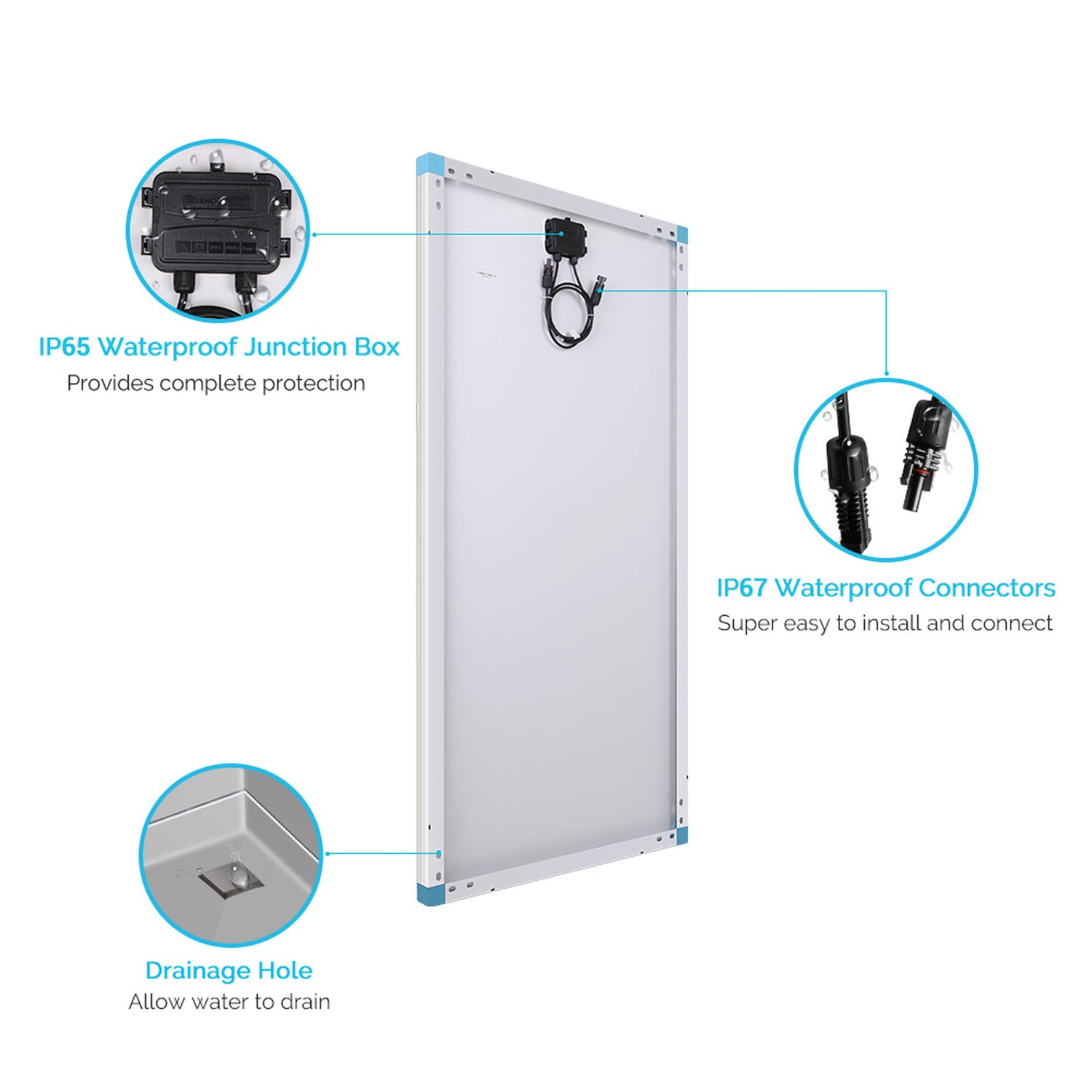

  • IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets

Versatile

  • Can be used for many different applications
  • Ground mount compatible
  • Compatible with on-grid and off-grid inverters

Installation Ready

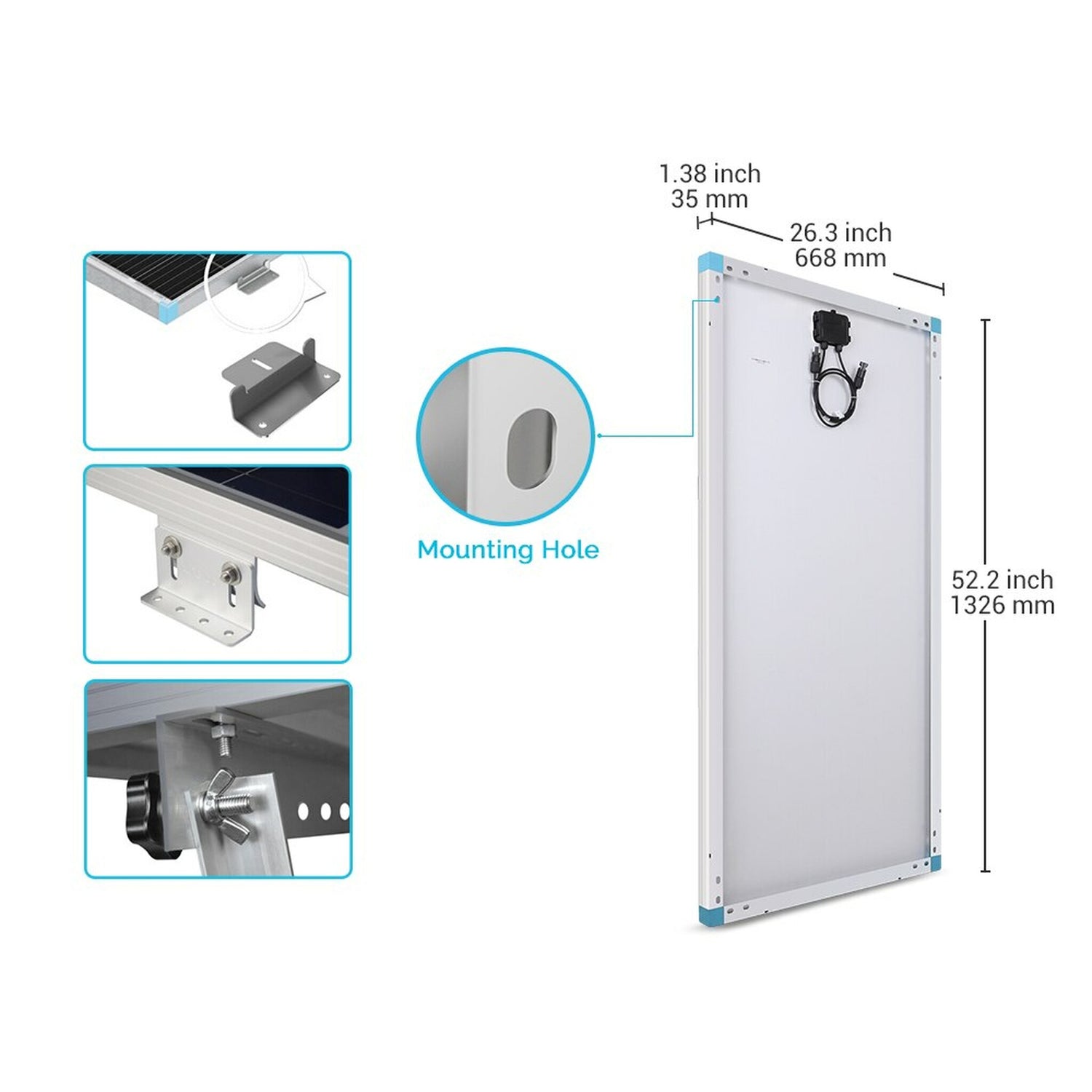

  • Pre-drilled holes on the back of the panel allow for fast mounting and securing
  • Pre-drilled holes are included for grounding
  • Compatible with a variety of Renogy mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts


PACKAGE INCLUDES

175 Watt Monocrystalline Solar Panel

175 Watt Monocrystalline Solar Panel

1 x


SPECIFICATIONS
Max Power at STC: 175W Open Circuit Voltage: 21.6V
Short Circuit Current: 10.62A Opitmum Operating Voltage: 18V
Optimum Operating Current: 9.73A Operating Temperature: -40°F to 176°F (-40°C to 80°C)
Maximum System Voltage: 600VDC UL Maximum Series Fuse Rating: 15A
Cables: 12 AWG 2.3ft long Dimensions: 52.3x26.4x1.38 in (1328*670*35mm)
Weight: 20.9 lbs (9.5Kg) Solar Cells: 32 Monocrystalline Cells
Junction Box: IP65 Connectors: Solar Connectors
Module Efficiency: 19.80%


WARRANTY INFORMATION

Panels

5 year 95% output warranty,10 year 90% output warranty,25 year 80% output warranty,

5 year material and workmanship warranty
Accessories 1-year material warranty
