Renogy 50 Watt 12 Volt Flexible Monocrystalline Solar Panel

Regular price $109.99 USD
Regular price Sale price $109.99 USD
Tax included. Shipping calculated at checkout.


DESCRIPTION

Traditional solar panels are rigid and often enclosed in tempered glass. The Renogy 50W Flexible Solar Panel is anything but traditional. Perfect for marine use or placement on top of a van or vehicle, the Renogy 50W Lightweight Solar Panel is thin and capable of flexing up to 248 degrees. At 2.87 pounds, this flexible solar panel weighs only a quarter of its traditional 50W counterpart. Highly flexible, this lightweight panel can easily be installed on curved surfaces. This panel can also be used for other various applications, including providing power on a boat or teardrop trailer.

Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.

KEY FEATURES

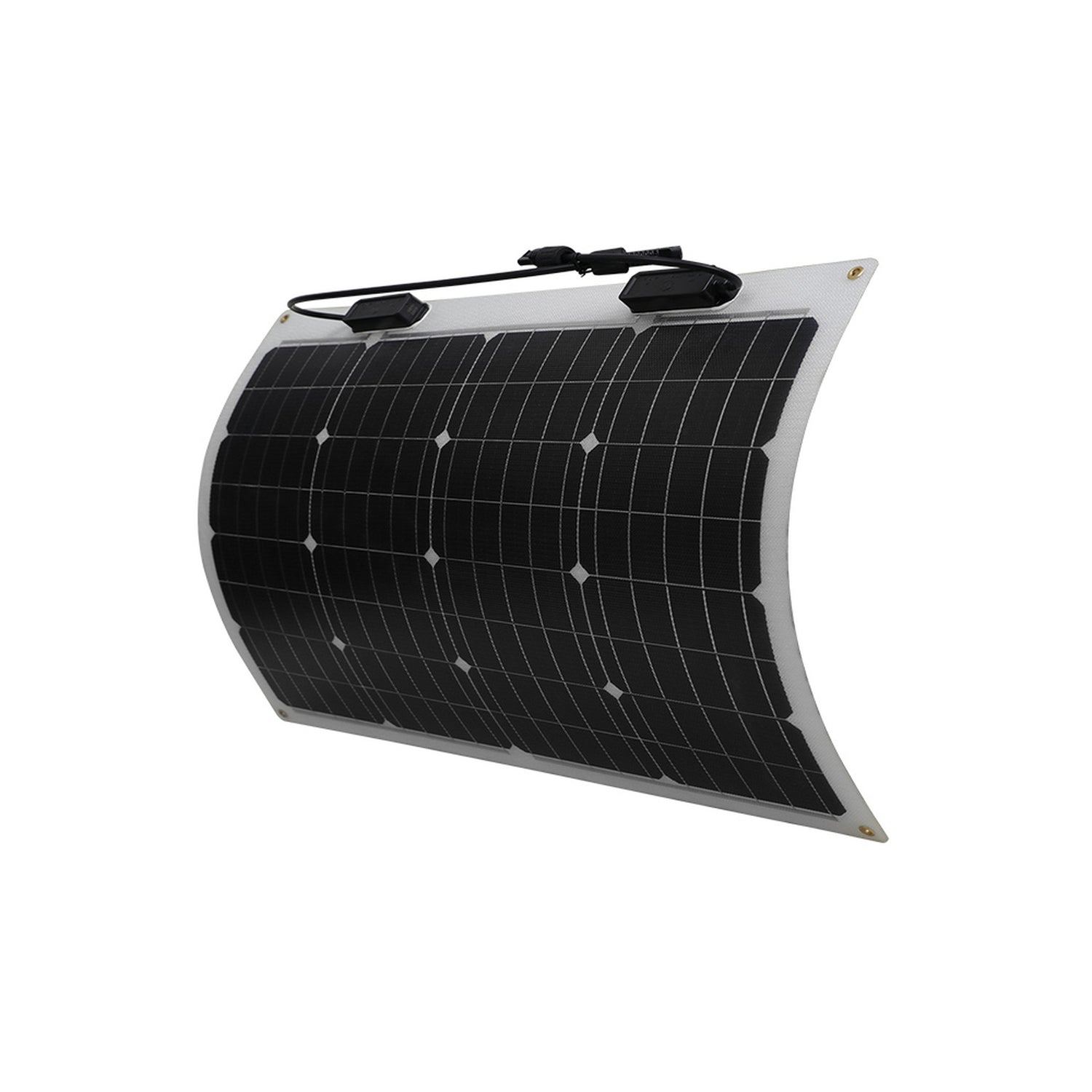

Extremely Flexible
  • This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream
Ultra Lightweight
  • Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze
Super Thin Lamination
  • Hardly noticeable, the Renogy 50W Lightweight Panel laid flat is only a tenth of an inch tall making it ideal for a stealthy solar setup.
Highly Durable
  • Rigorously tested, the 50W panel was designed to withstand extreme wind of up to 2400 Pa and snow loads of up to 5400 Pa


PACKAGE INCLUDES

Renogy 50W Flexible Solar Panel

Renogy 50W Flexible Panel

1 x



RENOGY 50 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL

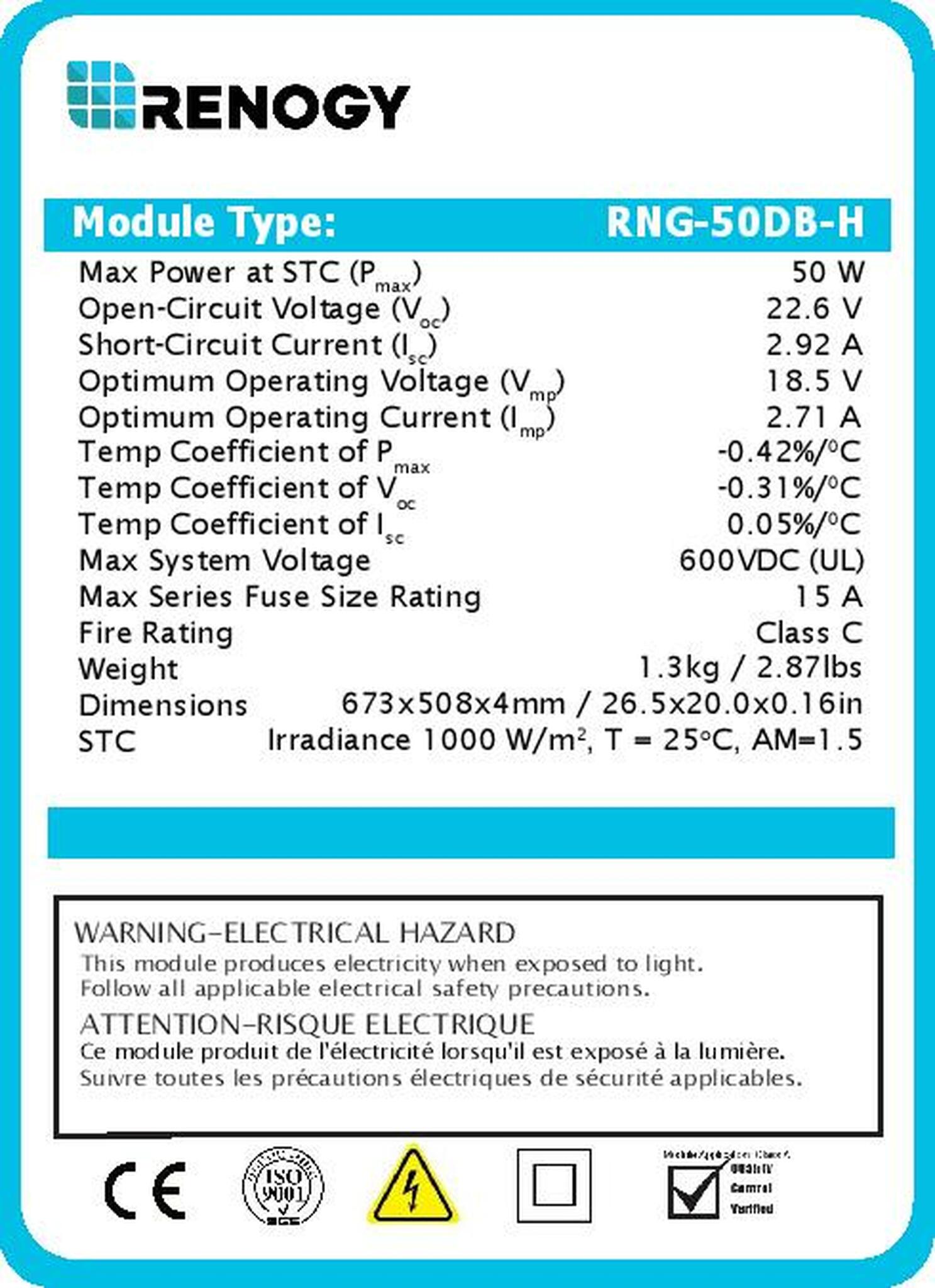

Electrical Specifications Mechanical Specifications
Maximum Power at STC: 50W Cell Type Monocrystalline (4.92 x 2.46 in)
Open Circuit Voltage 22.6V Number of Cells 32 (4 x 8)

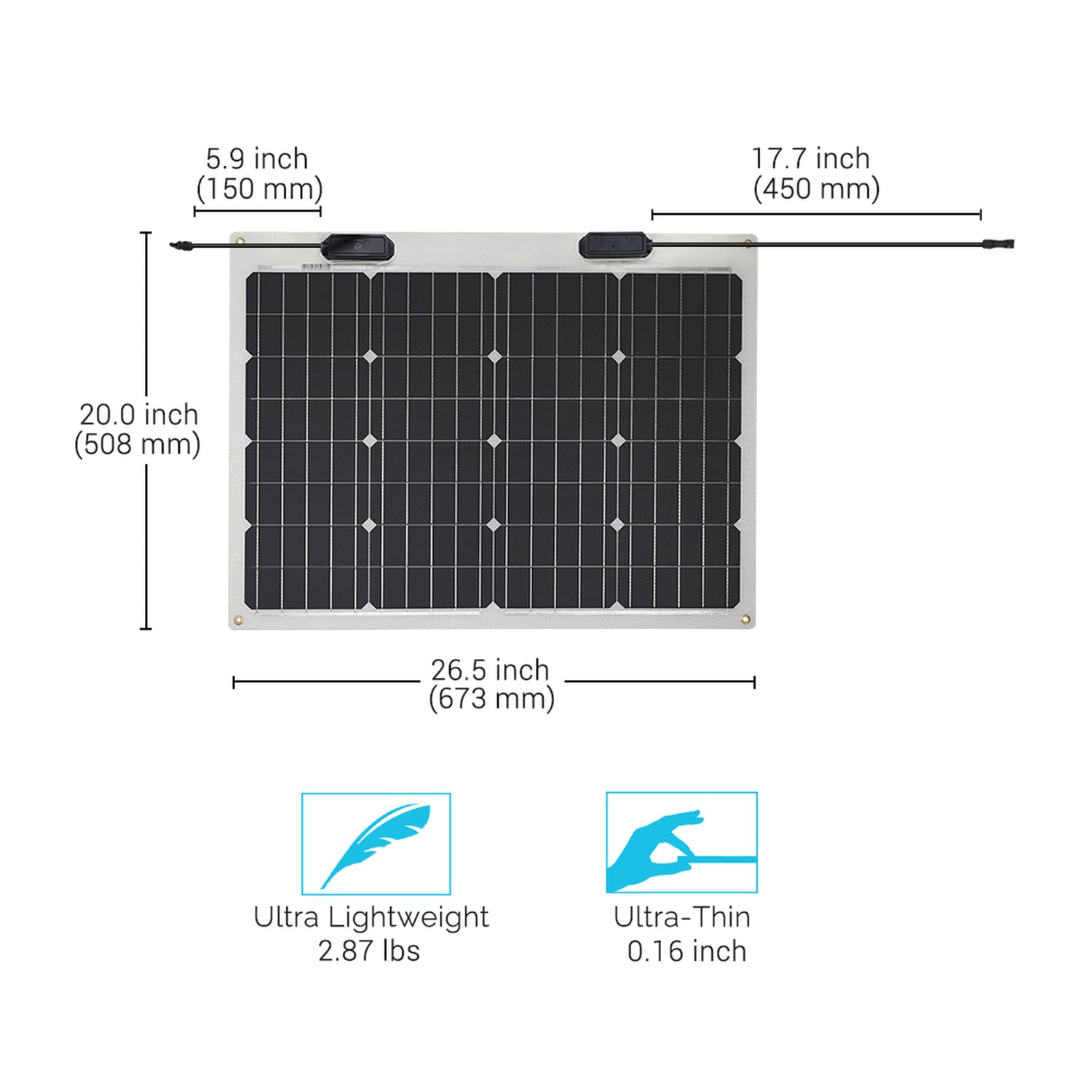

Short Circuit Current 2.92A Dimensions 26.5 x 20.0x 0.08 in (673 x 508 x 2 mm)
Opitmum Operating Voltage 18.5V Weight 2.87 lbs (1.3 kg)
Optimum Operating Current 2.71A Front Glass Tempered Glass 0.13 in (3.2 mm)
Module Efficiency 14.6% Frame Black Anodized Aluminum Alloy
Maximum System Voltage 600 VDC UL Connectors Solar Connectors
Maximum Series Fuse Rating 15A Fire Rating Class C
Thermal Characteristics Solar Connectors
Operating Temperature -40°F to 185°F(-40ºC to +85ºC) Rated Current 30A
Nominal Operating Cell Temerature (NOCT) 45±2ºC Maximum Voltage 1000VDC
Temperature Coefficient of Pmax -0.42%/C Maximum AWG Size Range 10AWG
Temperature Coefficient of Voc -0.31%/C Temperature Range -40ºF to 194ºF
Temperature Coefficient of Isc 0.05%/C IP Rating IP 67


WARRANTY INFORMATION

Panels

25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty
